RCB G19 mini E BIKE

Size and Fit (Suitable for heights 155 cm to 190 cm)

A. Overall Length :

1500mm

B. Overall Height :

1060mm

C. Wheelbase :

945mm

D. Seat Height :

820mm

E. Bottom Bracket Height :

285mm

F. Wheel Diameter :

470mm

G. Effective Top Tube Length :

480mm

H. Minimum Seat-to-Crank Distance :

780mm

J. Seat Surface-to-Crank Distance :

820mm

K. Seat-to-Handlebar Reach :

380mm

L. Handlebar Height :

1070mm

M. Handlebar Width :

665mm

N. Pedal Ground Clearance :

120mm

Bike Technical Dimensions

RCB G19 mini E BIKE - All Parameters

All Parameters

EU Compliance

CE Marked + EN 15194 Tested

Maximum Range

Up to 100 km

Battery Capacity

36 V / 13 Ah

Climbing Ability

Up to 25°

Rated Motor Power

250 W

Charger

42 V / 2.0 A

NFC Unlocking

Yes

Peak Motor Power

Up to 630 W

Smart Security

APP / NFC / 4-Digit Password

Maximum Assisted Speed

25 km/h

Included Accessories

Combination Lock / Portable Pump / Bike Multi-Tool

Tire Size

16 × 4.0 Inches

Brake System

Front & Rear Mechanical Disc Brakes

Water Resistance

IPX4

Net Weight

34.81 kg

Overall Dimensions

1500 × 665 × 1060 mm

Front Rack

Included

Display

LCD Display

APP Control

Yes

Tire Model

WANDA W1272 Puncture-Resistant Fat Tires

Charging Time

Approx. 6.5 Hours

Sensor Type

MIVICE S200 Torque Sensor

Gear System

Shimano 7-Speed

Certification Documents

CE Declaration of Conformity + EN 15194 Test Report Available

Applicable European Markets

Germany, France, Spain, Italy, Netherlands, Belgium, Austria, Portugal and other EU markets*

RCB G19 mini E BIKE

What is included in the package?

RCB G19 Mini E-Bike ×1
Charger ×1
NFC Cards ×2
CE Road Inspection Report ×1
User Manual ×1
Multi-Tool ×1
Combination Lock ×1
Portable Pump ×1
Front Cargo Rack ×1
Bicycle key x 2

RCB G19 Mini E-Bike ×1

RCB G19 Mini E-Bike

Charger ×1

Charger

NFC card ×2

NFC card

CE Road Inspection Report ×1

CE Road Inspection Report

User Manual ×1

User Manual

Multi-Tool ×1

Multi-Tool

Combination Lock ×1

Combination Lock

Portable Pump ×1

Portable Pump

Front Cargo Rack ×1

Front Cargo Rack

Bicycle key ×2

Bicycle key

Who is this model suitable for?

Who Is the RCB G19 Mini For?

The RCB G19 Mini is ideal for riders looking for a compact, comfortable and smart e-bike for daily commuting, leisure riding and longer journeys.

Für welche Fahrer ist der RCB G19 Mini geeignet?

Who Is the RCB G19 Mini Suitable For?

  • Urban Commuters

    Ideal for daily trips to work, university, appointments and short-distance city travel.

  • Comfort-Focused Riders

    The MIVICE S200 torque sensor provides smooth and natural pedal assistance based on the rider’s actual pedalling force.

  • Leisure & Touring Riders

    With a maximum assisted range of up to 100 km, the G19 Mini is also suitable for longer weekend rides and leisure trips.

  • Security-Conscious Riders

    NFC unlocking, 4-digit password protection and APP connectivity provide added convenience and security for everyday use.

Why Choose the RCB G19 Mini?

  • Compact Yet Versatile

    The 16 × 4.0-inch fat tires provide stable handling on city roads, cycle paths, gravel roads and lightly uneven surfaces.

  • Natural Riding Feel

    The MIVICE S200 torque sensor adjusts motor assistance in real time according to the rider’s pedalling effort.

  • Built for Daily Use and Longer Rides

    The 36V 13Ah removable battery provides a maximum assisted range of up to 100 km under suitable riding conditions.

  • Useful Accessories Included

    A front cargo rack, combination lock, portable pump and bike multi-tool are included for added everyday practicality.

FAQs

1. What is the difference between the 250W rated power and 630W peak power?

The RCB G19 Mini has a 250W continuous rated motor power and can deliver up to 630W peak power for short periods when additional assistance is required, such as during acceleration or climbing.

Rated power refers to the motor's continuous operating power, while peak power is the maximum short-term output available under demanding conditions.

For EU EPAC classification, the key motor-power figure is the maximum continuous rated power, which must not exceed 250W, with motor assistance progressively reduced and cut off before 25 km/h. The 630W peak figure does not mean the bike has a 630W continuous-rated motor.

2. Is the RCB G19 Mini compliant with European e-bike requirements?

Yes. The RCB G19 Mini is configured as an EPAC electric bicycle with a 250W rated motor and a maximum assisted speed of 25 km/h.

The product is CE marked and has been tested in accordance with EN 15194. Relevant compliance documentation, including the EU Declaration of Conformity and EN 15194 test report, is available.

EN 15194 is the harmonised European standard specifically covering electrically power-assisted cycles.

3. How far can the RCB G19 Mini travel on one charge?

The RCB G19 Mini provides a maximum assisted range of up to 100 km under suitable riding conditions.

Actual range may vary depending on rider weight, pedal-assist level, terrain, temperature, wind, tyre pressure, road conditions and riding habits.

Using lower assistance levels and maintaining suitable tyre pressure can help improve riding efficiency.

4. Can the 36V 13Ah battery be removed for charging?

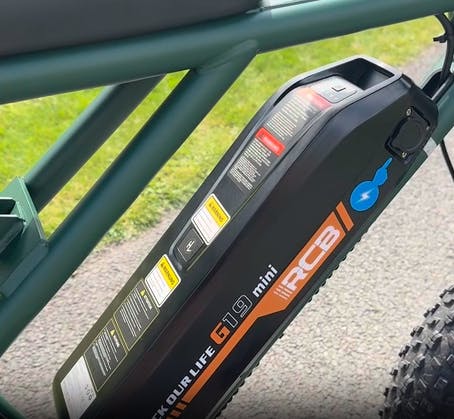

Yes. The RCB G19 Mini uses a 36V 13Ah removable lithium battery, allowing it to be charged either on the bike or separately.

With the included 42V 2.0A charger, a full charge takes approximately 6.5 hours.

The removable design is convenient for riders who store their bike in a garage, bicycle parking area or other location without a nearby power outlet.

5. What is the advantage of the MIVICE S200 torque sensor?

The MIVICE S200 torque sensor detects how much force you apply to the pedals and adjusts motor assistance accordingly.

This provides a smoother and more natural riding feel than a basic cadence-based system. Light pedalling produces gentler assistance, while stronger pedalling provides more support for acceleration and climbing.

Together with the 5 adjustable pedal-assist levels, riders can choose the amount of assistance that best suits the route and riding conditions.

6. What anti-theft features does the RCB G19 Mini have?

The RCB G19 Mini provides multiple security options, including NFC unlocking, a 4-digit password-protected start-up system and APP connectivity.

A physical combination lock is also included with the bike for additional protection when parked.

For better security in public areas, we recommend using the electronic security functions together with the physical bicycle lock.
